Peking Bridge Range
Peking Garden Bridges feature two low side rails with ball caps, they can be painted to suit their surroundings or left unpainted. The Peking Bridge is great for access over water or as a garden feature, they are also very attractive in any setting.
Click Here to view full description, dimensions & deliveries.
Please choose your option from the table below before choosing additional extras.
Please swipe left/right on tables to view all sizes/ information.
Speak to an Expert
Want to speak to an expert or order over the phone?
Call us on 01253 205 128
Free Delivery
Free mainland UK delivery on all items!
Assembly Instructions
Watch our video on how to assemble your garden bridge.

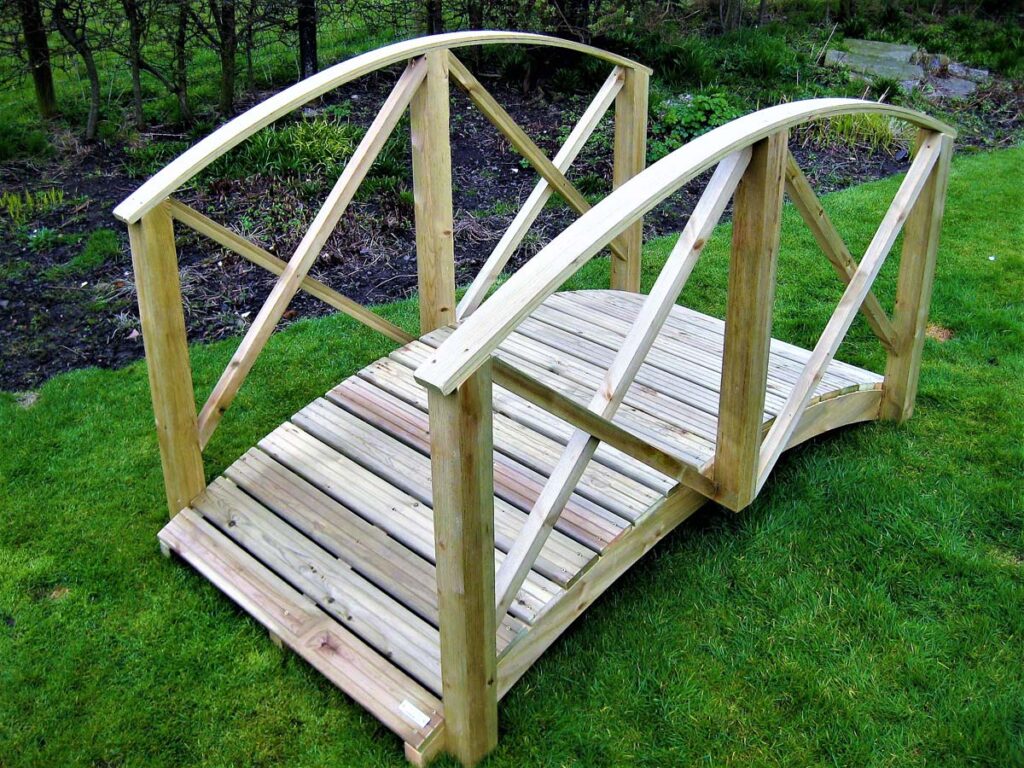

Peking Garden Bridge Range
The Peking garden bridge is a stylish wooden bridge with low profile side poles and rails. It is available in brown and natural wood colours, and is also paintable.
The Peking bridge is available in different sizes and widths for decorative and pedestrian uses, these solidly built Peking Bridges look perfect in virtually any garden or open space.
We can make your Peking Bridge to your specifications
Customisations such as LED lights, anti-slip boards and other additions are available on our accessories page. Feel free to contact us with any questions regarding Peking Style Bridges.
Quality Craftsmanship From Garden Bridge UK
Peking Style Wooden Bridges are both functional and decorative giving an oriental look to any area.
They are ready built up to 1.2 meters, with some assembly required for larger sizes. We provide full instructions to complete assembly and our friendly customer service team can help should you require it.
Dimensions
| Bridge Length | 1000mm | 1200mm | 1500mm | 1800mm | 2100mm | 2600mm | 3000mm | 3500mm | 4000mm | 4800mm |
|---|---|---|---|---|---|---|---|---|---|---|
| Handrail Size | 70×10 | 70×10 | 70×15 | 70×15 | 70×15 | 70×20 | 70×20 | 70×34 | 70×34 | 70×34 |
| Handrail height above deck | 135 | 135 | 145 | 145 | 145 | 175 | 160 | 220 | 300 | 300 |
| Post Centres | 425 | 510 | 675 | 770 | 950 | 765 | 930 | 825 | 875 | 1050 |
| Number of posts per balustrade | 3 70×70 | 3 70×70 | 3 70×70 | 3 70×70 | 3 70×70 | 2x 70x702x 45×90 | 2x 70x702x 45×90 | 2x 70x703x 45×90 | 2x 70x703x 45×90 | 2x 70x703x 45×90 |
| Height of arch top in centre | 170 | 180 | 180 | 225 | 240 | 280 | 360 | 450 | 385 | 410 |
| Underside clearance | 60 | 90 | 90 | 130 | 145 | 175 | 240 | 340 | 165 | 190 |
Handrails height above deck (for anti slip boards add 8mm)
| Bridge size/ Handrail height above boards in mm | 1000mm | 1200mm | 1500mm | 1800mm | 2100mm | 2600mm | 3000mm | 3500mm | 4000mm | 4800mm |
|---|---|---|---|---|---|---|---|---|---|---|
| 600mm | 225 | 225 | 235 | 235 | 235 | 275 | 275 | 275 | NA | NA |
| 900mm | 225 | 225 | 235 | 235 | 235 | 275 | 275 | 275 | 1000 | 1000 |
| 1200mm | 225 | 225 | 235 | 235 | 235 | 275 | 275 | 275 | 1000 | 1000 |
Deliveries
1m – 3.5m bridges – standard delivery 5-8 working days (turbo deliver 2-4 working days). If you required timed or weekend delivery please contact us for a price.
4m – 4.8m bridges – standard delivery 8-20 working days (please call for turbo delivery quote). These may be delivered in Kit form by HGV on the pallet network. Please be prepared to off load them from the lorry by fork lift or manually (will require minimum 2x persons). If you required timed or weekend delivery please contact us for a price.
Delivery timescales are approximate and in rare occasions delivery timescales can be shorter or longer depending on our workload. Please bear in mind we build our own products to order and and peak times it can be difficult to match supply to demand.
